TSBL-FF
$1,015.00

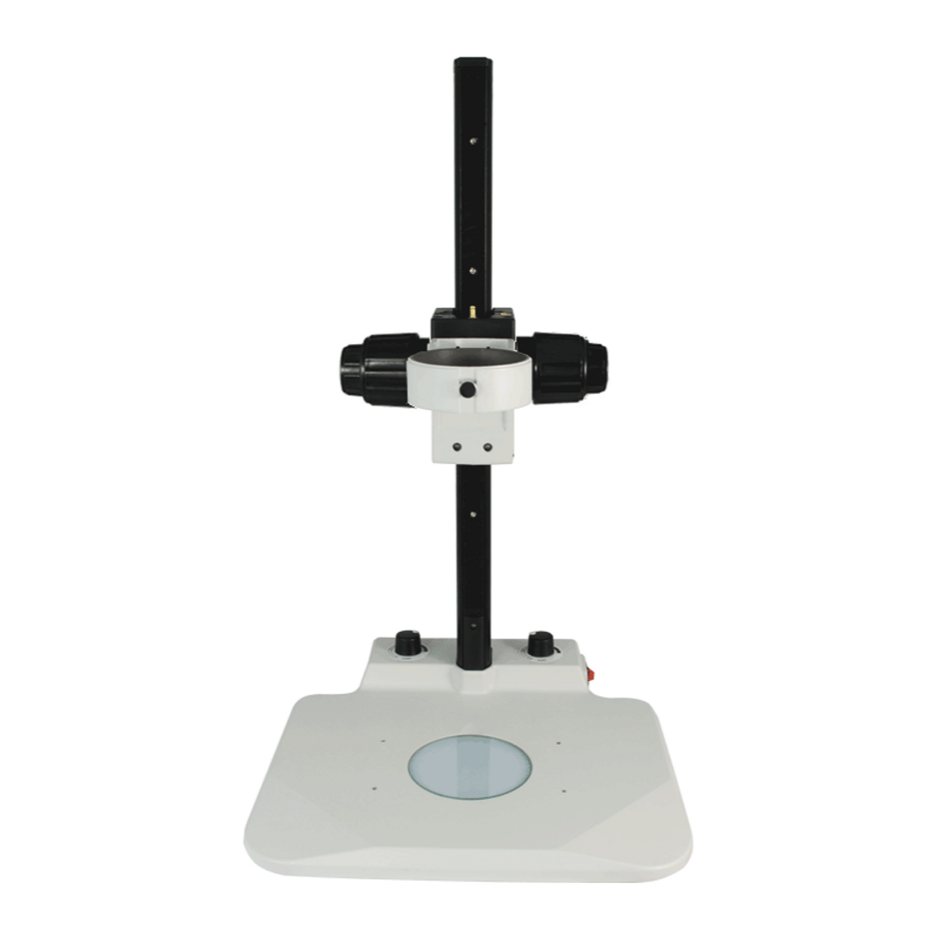

LED Illuminated Track Stand with Coarse/Fine Focus Rack
- Stable, shake-resistant track stand for microscopes
- Coaxial Coarse/Fine Focus
- 76mm scope holder which suits most microscopes
- 385mm focus distance
- Includes a 95mm black/white contrast plate and a clear glass plate
- LED bottom light base (dimmable)
Description
LED Illuminated Track Stand with Coarse and Fine Focus Block
- Stable, shake-resistant track stand for microscopes
- Coaxial Coarse/Fine Focus
- 76mm scope holder which suits most microscopes
- 385mm focus distance
- Includes a 95mm black/white contrast plate and a clear glass plate
- LED bottom light base (dimmable)
Specifications
| Track Stand | ||
| Stand Type | Track Stand | |
| Holder Adapter Type | 76mm diameter scope holder | |
| Track Length | 520mm | |
| Base Type | Illumination Base | |
| Stand Throat Depth | 132mm | |
| Base Dimensions | 320x316x21mm | |
| Focus Mode | Manual | |
| Focus Type | Coaxial Coarse/Fine Focus | |
| Focus Distance | 375mm | |
| Coarse Focus Distance per Rotation | 23mm | |
| Fine Focus Distance per Rotation | 0.56mm | |
| Focus Knob Tightness | Adjustable tightness | |
| Illumination Type | LED Transmitted Light | |
| Input Voltage | AC90-240V 50/60Hz | |
| Output Voltage | DC 6/12/24V | |
| Power Cord Connector Type | USA 3 pins | |
| Power Cable Length | 1.8m | |
| Material | Metal | |
| Color | White | |
| Net Weight | 3.94kg (8.69lbs) | |
| Dimensions | 320x316x550mm (12.598×12.441×21.654 in.) | |
| Microscope Plates | ||
| Plate Type | Black White Plate | |
| Plate Size | Diameter 95x5mm | |
| Material | Plastic (ABS) | |
| Plate Type | Clear Glass Plate | |
| Plate Size | Diameter 95x5mm | |
| Material | Clear Float Glass | |
