TC400AB
$2,595.00

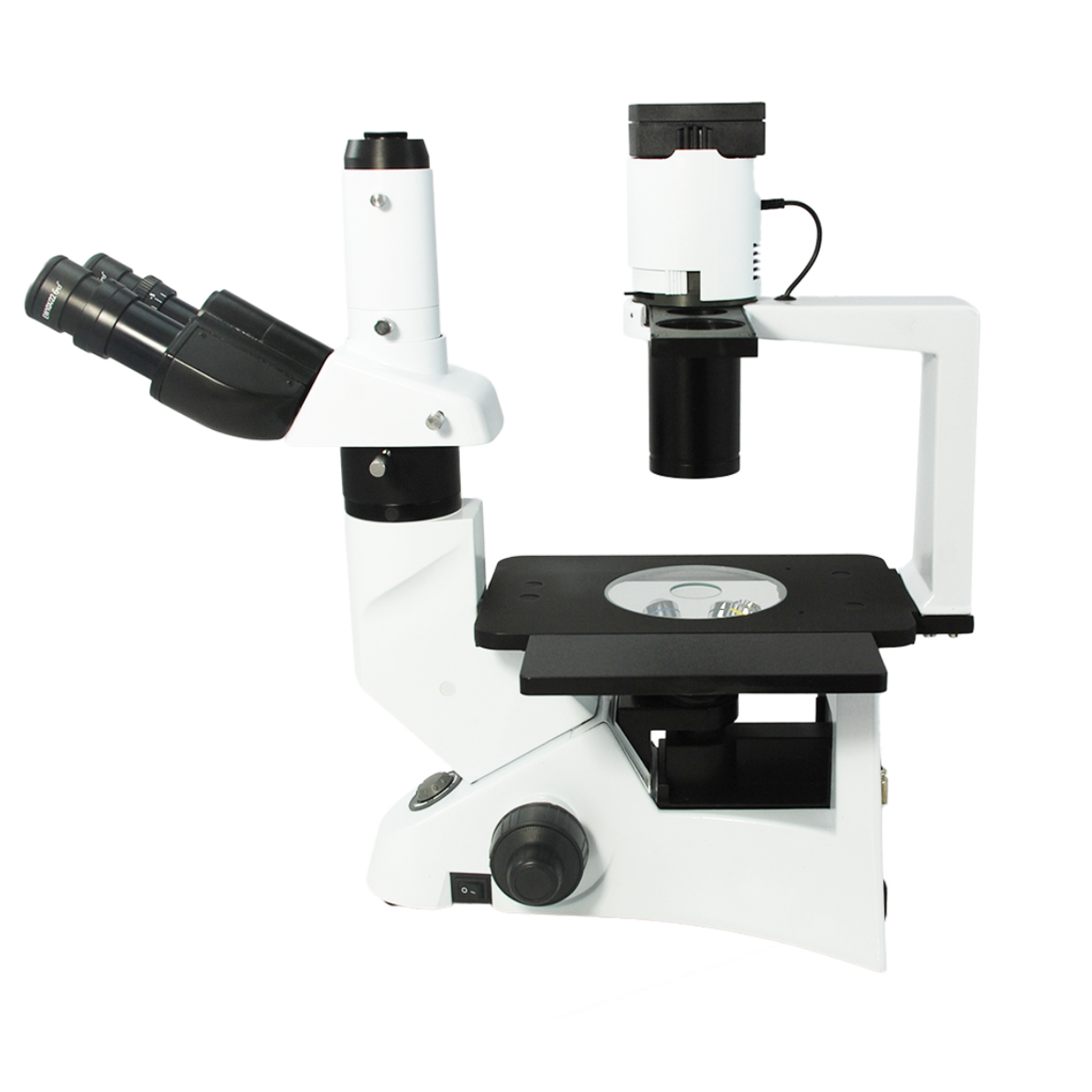

40X-400X Inverted Compound Cell Culture Microscope
Trinocular, Halogen Light, Abbe Condenser
- 40-400X Total Magnification
- 10X Eyepiece
- 4X 40X Infinity Plan Achromatic Objective
- 10x 20x Infinity Plan Achromatic Positive Phase Contrast Objective
- Inverted
- Halogen Transmitted Light
- Trinocular Port for Connecting a Camera for Simultaneous Viewing with Eyes and Cameras.
- Input Voltage: AC 90-240V 50/60Hz
- Select Camera and LCD options to add to the microscope.
Description
Options
Select Camera and LCD options to add to the microscope.
40X-400X Inverted Compound Cell Culture Microscope
Trinocular, Halogen Light, Abbe Condenser
This inverted microscope is particularly popular for cell culture, tissue culture, clinical lab, routine diagnosis, and life science research. It allows for direct observation of specimens in the culture vessel without slide preparation and direct access to the specimen while it is being imaged.
The inverted design gives users greater freedom in sample sizes, so it is ideal if you work with big and heavy samples or with samples that differ considerably in size and weight.
Additionally, this microscope enables you to examine more samples in a shorter time, as the samples will stay focused for all magnifications, and any further samples will remain in focus.
- 40-400X Total Magnification
- 10X Eyepiece
- 4X 40X Infinity Plan Achromatic Objective
- 10x 20x Infinity Plan Achromatic Positive Phase Contrast Objective
- Inverted
- Standard Coupler: 1X
- 30° Eye Tube Angle
- Eyepiece Field of View: Dia. 22mm
- Halogen Transmitted Light
- Trinocular Port for Connecting to a Camera for Simultaneous Viewing with Eyes and Cameras.
- Input Voltage: AC 90-240V 50/60Hz
Applications
- Cell Culture
- Tissue Culture
- Clinical Laboratory
- Life Science Research
- Cytology Lab
- IVF Lab
BM13060313
Specifications
| Optical System | Infinite |
| Total Magnification | 40-400x |
| Standard Eyepiece | 10x Eyepiece |
| Standard Objective | 4x 40x Infinity Plan Achromatic Objective
10x 20x Infinity Plan Achromatic Positive Phase Contrast Objective |
| Field of View | Dia. 0.55-5.5mm |
| Working Distance | 2.1-17.3mm |
| Stand Height | 380mm |
| Base Type | Illumination Base |
| Base Dimensions | 330x245x70mm |
| Microscope Plate | 110x2mm Clear Glass Plate |
| Stage Platform Dimensions | 250x160mm |
| Focus Mode | Manual |
| Illumination Type | Halogen Transmitted Light |
| Condenser Type | Long Working Distance Condenser |
| Dry/Oil Type | Dry |
| Applicable Range of Objective | 4-40x |
| Output Power | 30W |
| Input Voltage | AC 90-240V 50/60Hz |
| Output Voltage | DC 6V |
| Power Cord Connector Type | USA 3 Pins |
| Cable Length | 1.8 meters |
| Weight | 10.54kg (23.24 lbs) |
| Overall Dimensions | 330x245x485mm (12.992×9.646×19.094 in.) |
