BM1000TH
$1,795.00
40X-1,000X Compound Laboratory Microscope, Trinocular, Camera Ready
- 40-1,000X Total Magnification
- 10X Adjustable Eyepiece
- 4X 10X 40X 100X Infinity Plan Achromatic Objective
- Trinocular and C-Mount Camera Ready
- Halogen Transmitted Light
- Input Voltage: AC 100-240V 50/60Hz

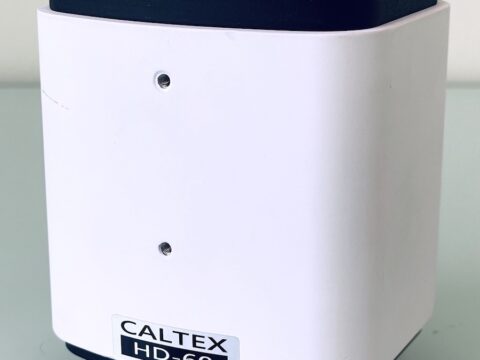

- Select Camera and LCD options to add to the microscope.
Description
Options
Select Camera and LCD options to add to the microscope.
40X-1,000X Compound Laboratory Microscope, Trinocular, Camera Ready
- 40-1,000X Total Magnification

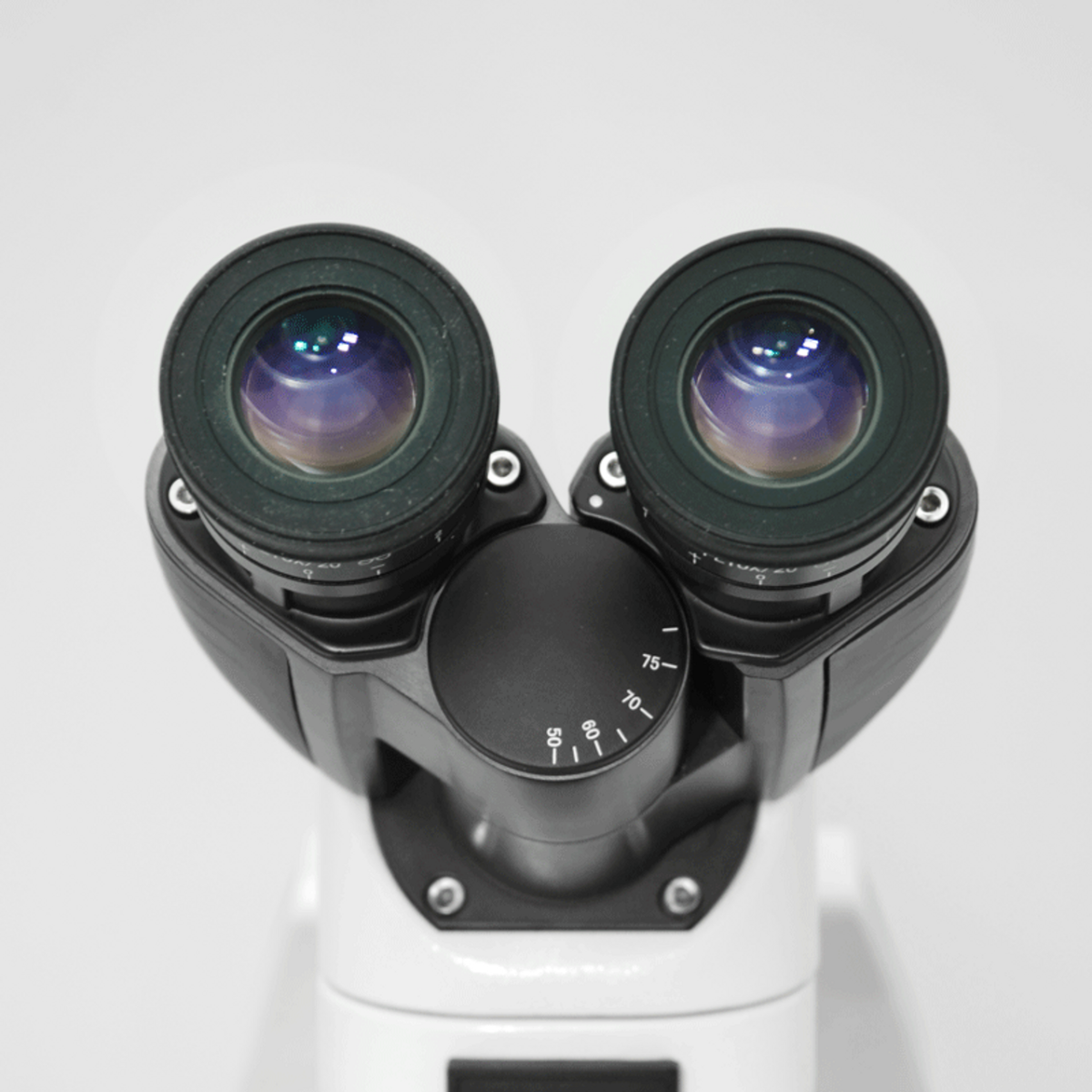

- 10X Adjustable Eyepiece
- 4X 10X 40X 100X Infinity Plan Achromatic Objective
- Trinocular and C-Mount Camera Ready
- Standard Coupler: 1X
- 30° Eye Tube Angle
- Eyepiece Field of View: Dia. 20mm
- XY Stage Travel Distance: 80x50mm
- Halogen Transmitted Light
- Input Voltage: AC 100-240V 50/60Hz
Application
- Clinical Laboratory
- Cytology Lab
- Biological Education
- Life Science Research
BM05100303
Specifications
| Optical System | Infinite |
| Total Magnification | 40-1000x |
| Standard Eyepiece | 10x Adjustable Eyepiece |
| Standard Objective | 4x 10x 40x 100x Infinity Plan Achromatic Objective |
| Field of View | Dia. 0.2-5mm |
| Working Distance | 0.18-11.9mm |
| Stand Height | 300mm |
| Base Type | Illumination Base |
| Base Dimensions | 280x185x80mm |
| Focus Mode | Manual |
| Illumination Type | Halogen Transmitted Light |
| Output Power | 30W |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 6V |
| Power Cord Connector Type | USA 3 Pins |
| Cable Length | 1.8 meters |
| Weight | 7.85kg (17.31 lbs) |
| Overall Dimensions | 280x185x430mm (11.024×7.283×16.929 in.) |
