SPI-200-3D

$8,800.00

Low-Cost, User-Friendly, Fast 3D SPI System

  • Low-Cost, Off-Line, 3D SPI system supports multiple SMT lines for inspecting solder paste printing
  • Improve your product yield and meet your customer’s requirements with an affordable budget
  • Same measuring technique as high-end automated in-line SPI system
  • Measure solder paste height with a laser beam
  • User Friendly, Fast, Simple Mouse Clicks
  • 3D real-time view of solder paste
  • Zoom 15x – 200x
  • Can Also Measure Typical Dimensions like Linear, XY, Radius, Diameter, Angle, Area, etc.
  • Multiple Applications: BGA, SMT, Solder Inspection and Measurement

Compare

Call for Price Quotes (949) 517-8000

    GUARANTEED SAFE CHECKOUT
    • Visa Card
    • MasterCard
    • American Express
    • Discover Card
    • PayPal

    3D Solder Paste Inspection Measurement System

    LOW-COST 3D SPI System

    • Low-Cost, Off-Line, 3D SPI system supports multiple SMT lines for inspecting solder paste printing
    • Improve your product yield and meet your customer’s requirements with an affordable budget
    • Same measuring technique as high-end automated in-line SPI system
    • Measure solder paste height with a laser beam
    • 3D real-time view of solder paste
    • Zoom 15x – 200x
    • Can Also Measure Typical Dimensions like Linear, XY, Radius, Diameter, Angle, Area, etc.
    • Multiple Applications
    • You can inspect and measure BGA solder joints and fine-pitch SMT with this SPI-200-3D system



    Laser Light Triangulation Method

    To Measure Solder Paste Height and Any Height or Depth Measurements



    Fast, Easy, No Programming

    • Easy to use, NO training required, Ready to Implement
    • Simple mouse clicks to get results FAST
    • A economic, off-line, bench-yop unit supports multiple SMT lines
    • Save measurements with image, and export measurement results to Excel
    • Perform measurements with a mouse and show results directly on LCD, without a computer.
    • Or, connect to a Windows computer and perform measurements on a PC.



    3D rotational viewing lens included for

    • Solder Inspection
    • 3D BGA Inspection
    • Soldering Rework



    Specifications

    SPI-200-3D Specifications

    Camera Auto Focus 6MP CMOS HD and USB dual outputs digital microscope camera
    Illumination High-intensity white LED ring light with intensity adjustment
    Measurement mode Multiple or single points height measuring within the Field Of View
    Measuring Laser Precise red laser line with intensity adjustment for paste height profiling
    Z height resolution 1 micron
    Repeatability ± 2 microns
    Measurement Software
    • Measure solder paste height with laser line offset.
    • Measurement function: XY, radius, diameter, angle, area, width, and path length.
    • Multiple calibrations, annotation, crosshairs, reticles, and comparison.
    • Image Stacking for Infinite Depth of Focus
    • Photo sticking for extender field of view at high resolution.
    • Measurement data output to Excel. Save image as jpg with measurement results.
    Measurement
    Accuracy (XY)
    5μ at 30x
    1μ at 200x
    3D inspection mode 3D 360° manual rotation with 35° oblique angle viewing and 0° straight down view
    Zoom Lens
    • 30x-200x zoom with detents
    • Expandable with optional lens adapters: 0.3x, 0.5x, 0.7x, 1.5x, 2x.
    Field of View 1.2mm (at 200x) to 8mm (at 30x)
    Viewing angle 0° straight view and 30° angle view with standard system
    Working Distance 100mm (4″) WD with a straight view
    50mm (2″) WD with 30° angle view adapter
    System Stand Multi-position arm boom stand with focus control block and weight base
    Power Supply 120-240V AC 50/60Hz
    Computer Requirements Windows 10/8/7 with USB2.0 port
    Warranty One Year Warranty

    Options

    LCD-12
    • 12″ UltraSharp Retina Display 1920x1080p real-time 60 FPS viewing, HDMI Input
    • Mounted on HD-60 camera for direct line of sight ergonomic inspection
    LCD-24 24” Desktop 1920x1080p real-time 60 FPS viewing, HDMI Input

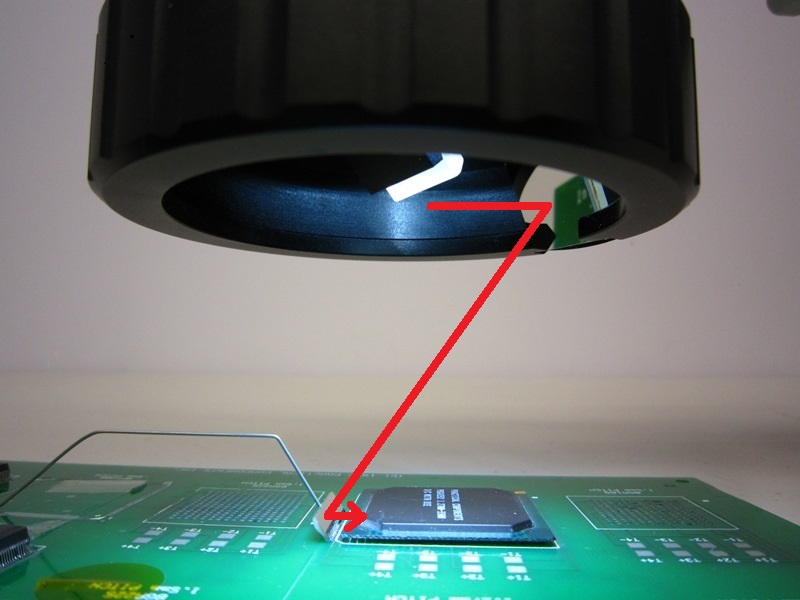

    BGA-HM BGA inspection mirror to work with SPI-200 for inspecting BGA solder joints
    XY1711 17″ x 11″ XY sliding stage for Multi-position boom stand
