LX70-HD4K Series (5x-1400x, 4K, Auto-Focus, Measurement)

The LX-70 offers 10x-70x zoom magnification, balancing detail and wide viewing for inspection and assembly tasks. It’s ideal for SMT, PCB inspection, and medical devices, and comes with 4K UHD, Auto-Focus, and WiFi-capable HD-4K camera for measuring, capturing photos, and recording videos. Priced similarly to professional stereo microscopes, the LX-70 is ergonomic and user-friendly, making it a powerful upgrade from traditional stereo models.

Showing all 7 results

LX70-HD4K-BS
$4,350.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System

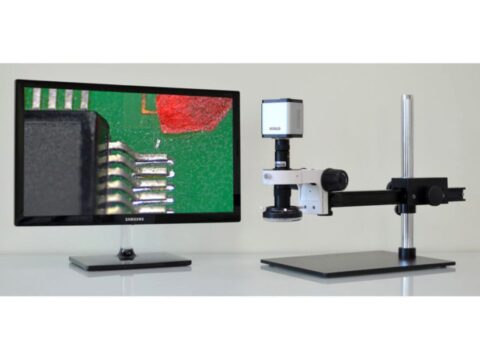

- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, and Multi-Angle Tilting Gliding Boom Stand.
- LCD Monitor not included.
Add to cart
LX70-HD4K-BS-L13
$4,900.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System
- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, Multi-Angle Tilting Gliding Boom Stand, and 13″ 4K UHD LCD
Add to cart
LX70-HD4K-BS-L27
$4,900.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System
- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, Multi-Angle Tilting Gliding Boom Stand, and 27″ Desktop 4K UHD LCD
Add to cart
LX70-HD4K-TSBL
$4,550.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System

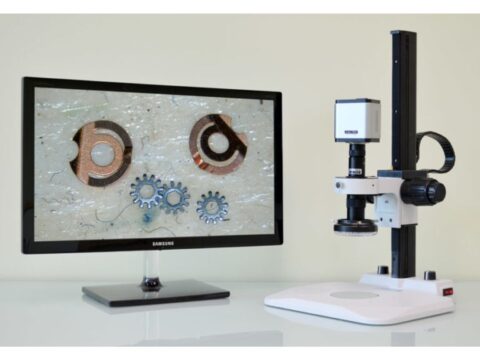

- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, and Track Stand LED Backlighting.
Add to cart
LX70-HD4K-TSBL-L13
$5,100.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System
- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, Track Stand LED Backlighting, and 13″ 4K UHD LCD
Add to cart
LX70-HD4K-TSBL-L27
$5,100.00
Most Powerful, 3-D, Auto-Focus, Measurement Microscope
- 8 MP UHD 4K (3840×2160) SONY Color CMOS Camera
- Auto-Focusing, Manual Focusing, and One-Click Focusing
- Zoom 10x-70x standard. Expandable to 5x to 1,400x with Optional Lens Adapters
- LED Ring Light with Intensity Control
- Measurement Functions: XY, linear, perpendicular, radius, diameter, concentric, angle, path, area, etc.
- Image Stacking for Extended Depth of Focus
- Photo Stitching for High-Resolution Image
- Measurement functions and image analysis built into the camera
- Measurement Software included for Windows PC
- SD Card and Flash Drive ports for Capturing Photos and Videos
- HDMI and USB Outputs for Connecting to LCD and Computer Simultaneously
- Optional 3D Rotational Viewing Adapter
- Optional Polarizer, UV, and Coaxial Lighting
- Choice of 4K UHD Retina Display of 13″ (Integrated) or 27″ (desktop)
- Choice of Boom Stand, Track Stand Backlighting, Post Stand, and Articulating Arm Stands
- Best 4K UHD Image Resolution
- Most Expandable System
- Include: LX70 Zoom Lens, HD4K Camera, LED Ring Light, Track Stand LED Backlighting, and 27″ Desktop 4K UHD LCD
Add to cart
LX-70 Series

The 10x-70x detent zoom magnification of LX-70 offers the best combination of magnification and wide viewing area for your inspection, assembly and rework. This zoom range is particularly useful for SMT and PCB inspection with 3-D rotational view, large machining, and medical devices. LX-70 series can be coupled with Auto Focus HD camera, 4K camera, or WiFi camera to meet your application. All cameras are capable of measuring dimensions, capturing photo and recording video for your metrology and documentation purpose. At a comparable price to professional stereo zoom microscopes, LX-70 offers ergonomic, user-friendly, and useful features that the old-fashion stereo microscope cannot rival. There is no better time to upgrade to LCD digital microscope with Auto-Focus, 4K or WiFi camera.

Read more
