SZ-45
$1,770.00
Binocular Stereo Zoom Microscope
High-performance and reliable stereo zoom binocular microscopes for day-to-day inspection in electronic and medical device industries.
- 6.7x to 45x zoom with 10x eyepieces
- Vivid, detailed, high-resolution image
- Great Depth of Field, Wide Visual Field, and Stereoscopic 3-D View for easy inspection
- Parfocal Zoom for easy operation and focusing
- 45º angle eyepiece and 360º rotation on microscope body for ergonomic inspection
- Robust, professional quality, and dependable for inspection and soldering rework
- Mount on post stand, track stand, boom stand, and articulating arm stand
- Expand to wider zoom with eyepieces and objective lenses
- Maximum magnification up 2x to 270x

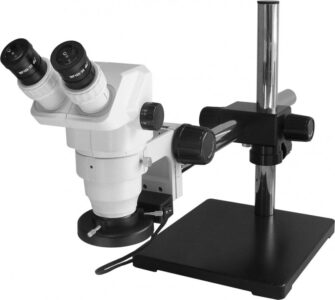

- Include: SZ45 stereo zoom microscope, 10x eyepieces, LED ring light, and gliding boom stand
Description
Binocular Stereo Zoom Microscope
High-performance and reliable stereo zoom binocular microscopes for day-to-day inspection in electronic and medical device industries. Ergonomic design with vivid & bright images makes QC inspection more ergonomic and easier on your eyes. 6x to 45x with 10x eyepieces cover all your inspection magnification requirements, plus optional lens adapters to expand the zoom range. LED ring light offers long-lasting usage with minimum heat.
Key Features:
- 6.7x to 45x zoom with 10x eyepieces
- Parfocal zoom for easy operation and focusing
- Vivid, detailed, high-resolution image
- Great depth of field, wide visual field & stereoscopic 3-D view for easy inspection
- 45º angle eyepiece and 360º rotation on microscope body for ergonomic inspection
- Robust, professional quality, and dependable
- Low cost, day-to-day general inspection, and soldering rework
- Mount on post stand, track stand, boom stand, and articulating arm stand
- Expand to wider zoom with eyepieces and objective lenses
- Maximum magnification up 2x to 270x
Applications
- PCB solder joint, SMT fine pitch inspection
- Soldering rework
- Medical device
- Industrial, R&D
- Wire harness
- Material & metal
- General inspection
Mounting Options
SZ-45 stereo zoom binocular microscope can be mounted on a multi-angle tilting boom stand, easy gliding double barrel boom stand, compact post stand with base, continuous track stand with base, or track stand with LED backlight. The LED ring light is the most common and most popular, but fiber optic gooseneck lighting offers more flexibility.
SZ-45 Specifications
| SZ45 Microscope Specifications | |
| Microscope | Binocular |
| Zoom Magnification | 6.7x – 45x with 10x High Eyepieces Included |
| Expanded Zoom Magnification | 2x – 270x with optional eyepieces and lens adapters |
| Zoom Ratio | 1:6.7 |
| Field of View | 4.9 mm to 32.8 mm |
| Expanded Field of View | 1 mm to 109.5 mm with optional lenses |
| Working Distance with standard 1x | 100 mm (3.93″) |
| Expanded Working Distance | 26 mm to 287 mm |
| Eyetube Inclination | 45° Angle and 360° Rotatable Microscope Head (76mm Dia.) |
| Interpupillary Adjustment | 52 mm to 75 mm |
| Eyepiece Diopter Correction | +/-5° Diopter |
| Lighting | LED Ring Light with Intensity Control |
| Weight | 3.81 lbs (1.73 kg) |
| Optional Eyepieces | 10x, 15x, 20x, 25x, 30x |
| Optional Auxiliary Lenses | 0.3x, 0.5x, 0.75x, 1.5x, 2.0x |
| Microscope Stand Options | |
| BS | Multi-position boom stand with weight base |
| BSU | Boom stand with table clamp |
| DBS | Dual-arm boom stand with weight base |
| TSBL | Track stand with LED backlighting base |
| PS | Post stand with base |
| TS | Track stand with base |
| AA | Articulating arm stand with table clamp |
| HA | Hydraulic arm stand with table clamp |
| XY Stage Options | |
| XY76 | XY manual stage 7″x6″ area, 3″x2″ travel, for TSBL, PS, TS. |
| XY76R | XY manual stage with rotation, 3″x2″ travel, for TSBL, PS, TS. |
| XY1711 | XY manual stage 17″x11″ area, 11″x9″ travel, for BS, BSU, DBS, AA, HA. |
| XY1711G | XY manual stage 17″x11″ area, 11″x9″ travel, for BS, BSU, DBS, AA, HA. Includes glass plate for backlighting |
| Eyepiece Options | |
| SE-10 | 10x eyepieces |
| SE-15 | 15x eyepieces |
| SE-20 | 20x eyepieces |
| SE-25 | 25x eyepieces |
| SE-30 | 30x eyepieces |
| Auxiliary Objective Lens Options | |
| SA-03 | 0.3X reducer lens adapter, working distance 287mm, for SZ and STZ |
| SA-05 | 0.5X reducer lens adapter, working distance 177mm, for SZ and STZ |
| SA-075 | 0.75X reducer lens adapter, working distance 117mm, for SZ and STZ |
| SA-15 | 1.5X magnifier lens adapter, working distance 47mm, for SZ and STZ |
| SA-20 | 2X magnifier lens adapter, working distance 26mm, for SZ and STZ |
| Lighting Options | |
| LED-POL-RL | LED Polarizing Ring Light |
| LED-DG | LED Dual Gooseneck Spot Light, gooseneck length 24cm |
| UV-RL | UV LED Ring Light (Black Light) for conformal coating inspection
400nm wavelength, 3500K color temp, 60 LED, Intensity Adjustment. |
| Special Mirror Options | |
| BGA-HM | BGA Inspection Mirror for inspecting BGA solder joints |
| STZ-45 / SZ-45 with 10x Eyepieces | |||
| Objective Lens | Working Distance | Magnification | Field of View |
| 0.3x | 287 mm | 2x – 13.5x | 16.3-109.4 mm |
| 0.4x | 217 mm | 2.68x – 18x | 12.2-82 mm |
| 0.5x | 177 mm | 3.35x – 22.5x | 9.7-65.6 mm |
| 0.7x | 120 mm | 4.69x – 31.5x | 6.9-46.9 mm |
| 1x | 100 mm | 6.7x – 45x | 4.8-32.8 mm |
| 1.5x | 47 mm | 10x – 67.5x | 3.2-21.8 mm |
| 2x | 26 mm | 13.4x – 90x | 2.4-16.4 mm |
