Description

Binocular Stereo Zoom Microscope

Professional, high-performance stereo zoom binocular microscopes are designed for day-to-day inspection in the electronics and medical device industries. Ergonomic design and vivid & bright images make QC inspection easier and less tiring for your eyes. 6x to 45x magnification with 10x eyepieces covers your routine inspection needs, and optional lens adapters can expand the zoom range to 2x to 270x. The LED ring light offers long-lasting usage with minimum heat and no noise.

Key Features:

• 6.7x to 45x zoom with 10x eyepieces
• Vivid, detailed, high-resolution image
• Great Depth of Field, Wide Visual Field, and Stereoscopic 3-D View for easy inspection
• Parfocal Zoom for easy operation and focusing
• 45º angle eyepiece and 360º rotation on the microscope body for ergonomic inspection
• Robust, professional quality, and dependable for inspection and soldering rework
• Expand to wider zoom with eyepieces and objective lenses
• Maximum magnification up to 2x to 270x
• LED Ring Light for bright and uniform illumination without fan noise and heat
• Mount on a post stand, a track stand, a boom stand, and an articulating arm stand

Applications

• PCB solder joint, SMT fine pitch inspection
• Soldering rework
• Medical device
• Industrial, R&D
• Wire harness
• Material & metal
• General inspection

Mounting Options

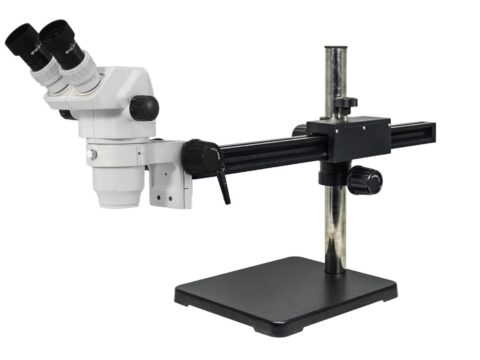

The SZ-45 binocular stereo zoom microscope can be mounted on a multi-angle tilting boom stand, an easy-gliding double-barrel boom stand, a compact post stand with base, a continuous-track stand with base, or a track stand with LED backlight. The LED ring light provides uniform, bright illumination for microscopic inspection that lasts and is free of heat and fan noise.



Specifications

SZ45 Microscope Specifications
Microscope	Binocular
Zoom Magnification	6.7x – 45x with 10x High Eyepieces Included
Expanded Zoom Magnification	2x – 270x with optional eyepieces and lens adapters
Zoom Ratio	1:6.7
Field of View	4.9 mm to 32.8 mm
Expanded Field of View	1 mm to 109.5 mm with optional lenses
Working Distance with standard 1x	100 mm (3.93″)
Expanded Working Distance	26 mm to 287 mm
Eyetube Inclination	45° Angle and 360° Rotatable Microscope Head (76mm Dia.)
Interpupillary Adjustment	52 mm to 75 mm
Eyepiece Diopter Correction	+/-5° Diopter
Lighting	LED Ring Light with Intensity Control
Weight	3.81 lbs (1.73 kg)
Optional Eyepieces	10x, 15x, 20x, 25x, 30x
Optional Auxiliary Lenses	0.3x, 0.5x, 0.75x, 1.5x, 2.0x
Microscope Stand Options

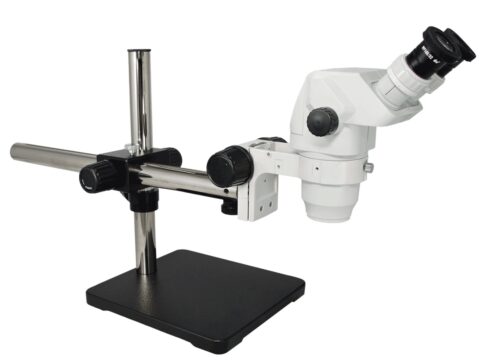

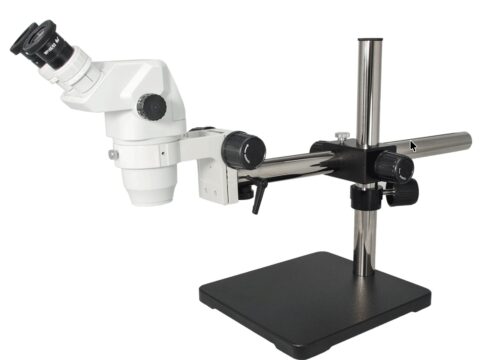

BS	Multi-position boom stand with weight base

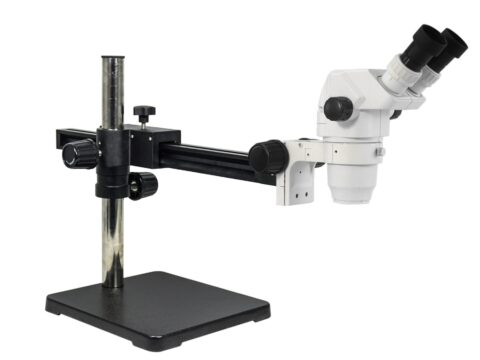

BS2	Multi-position gliding boom stand with base
BSU	Boom stand with table clamp
DBS	Dual-arm boom stand with weight base
TSBL	Track stand with LED backlighting base
PS	Post stand with base

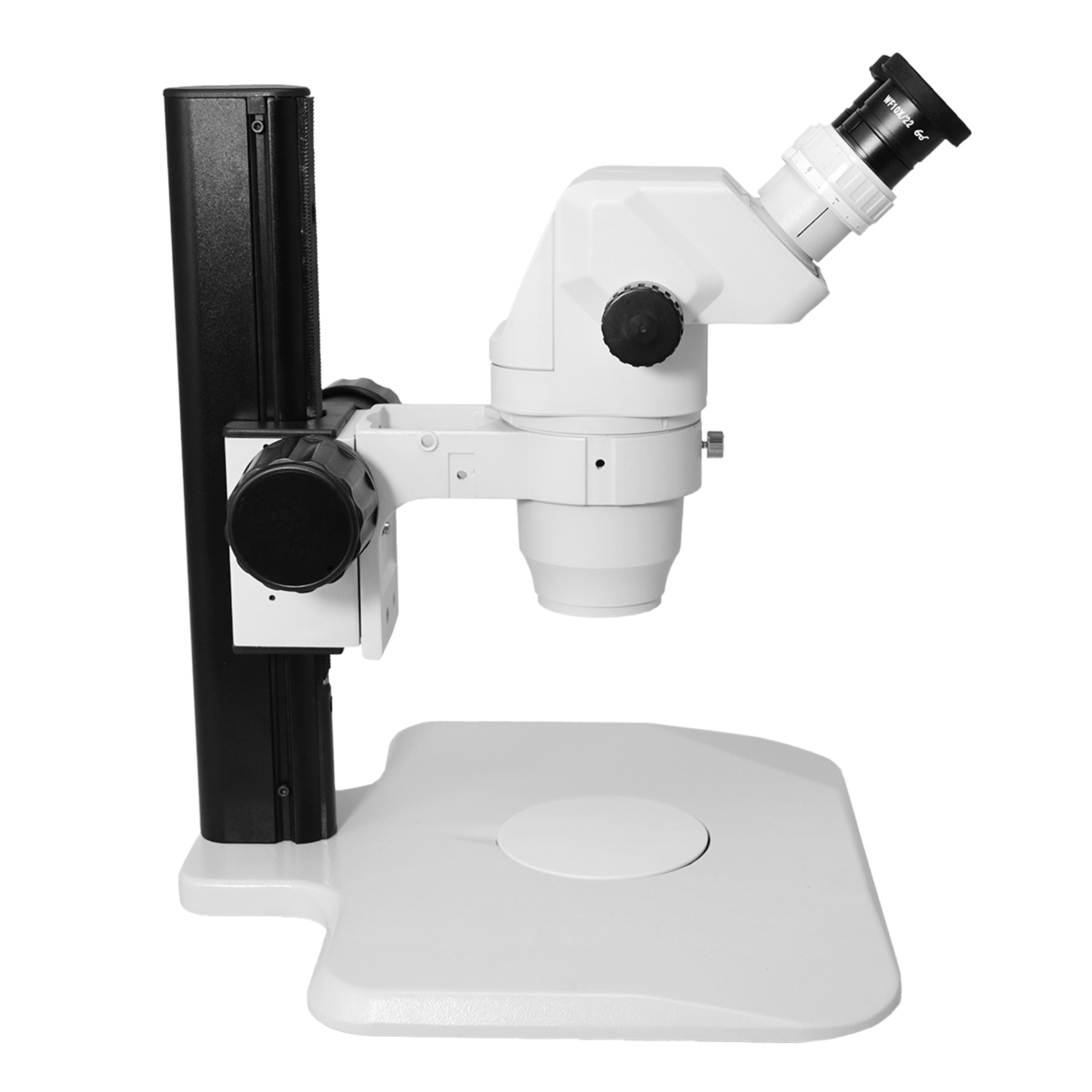

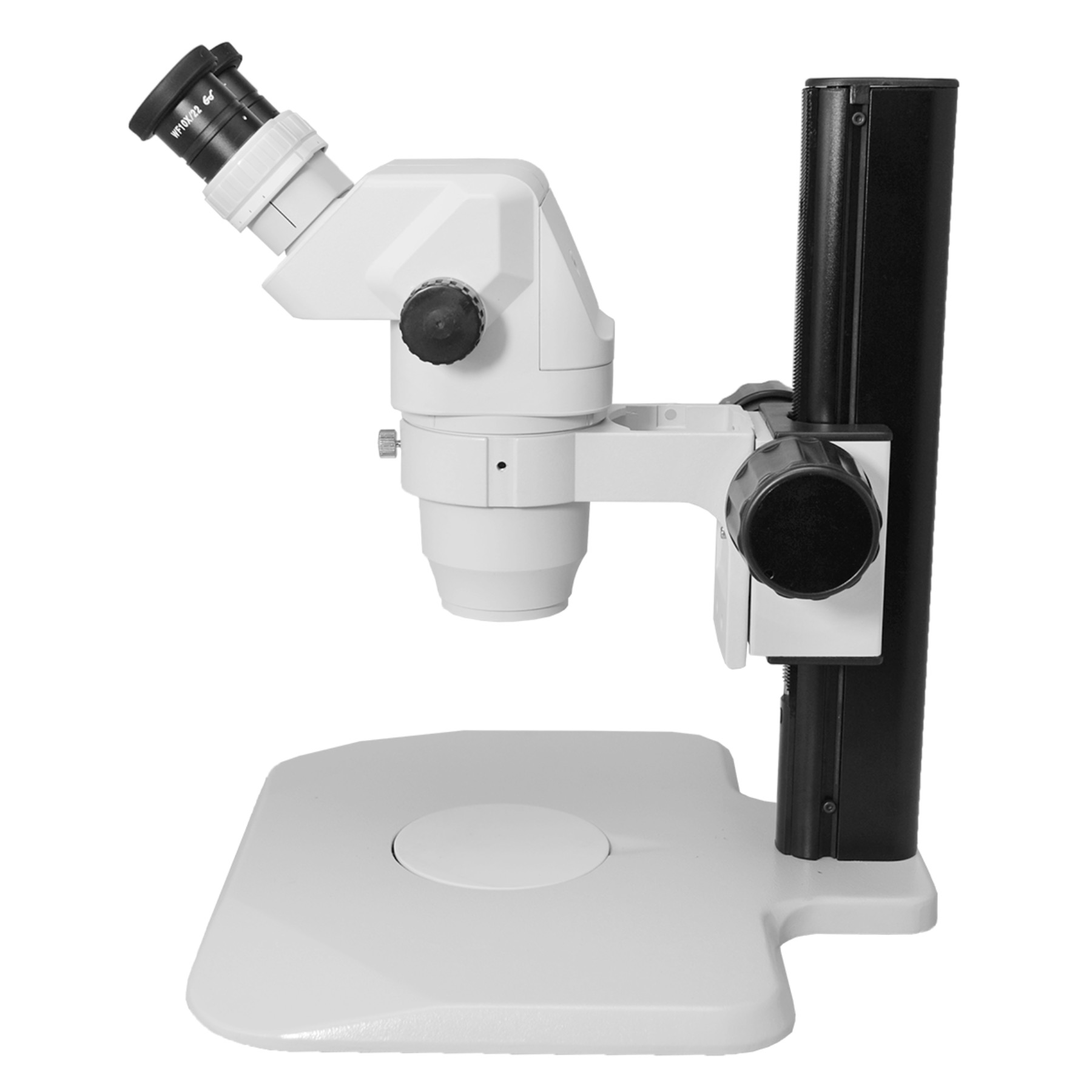

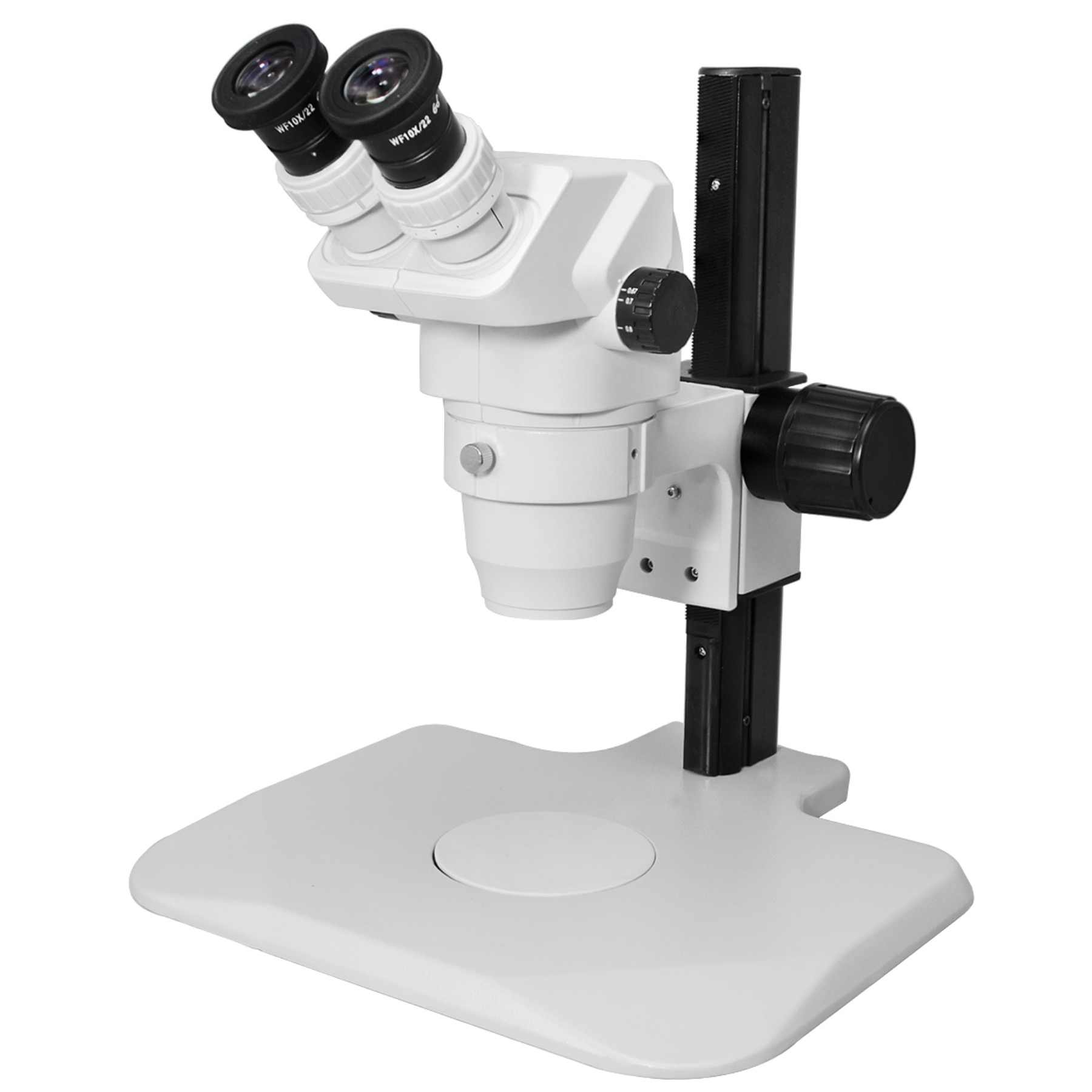

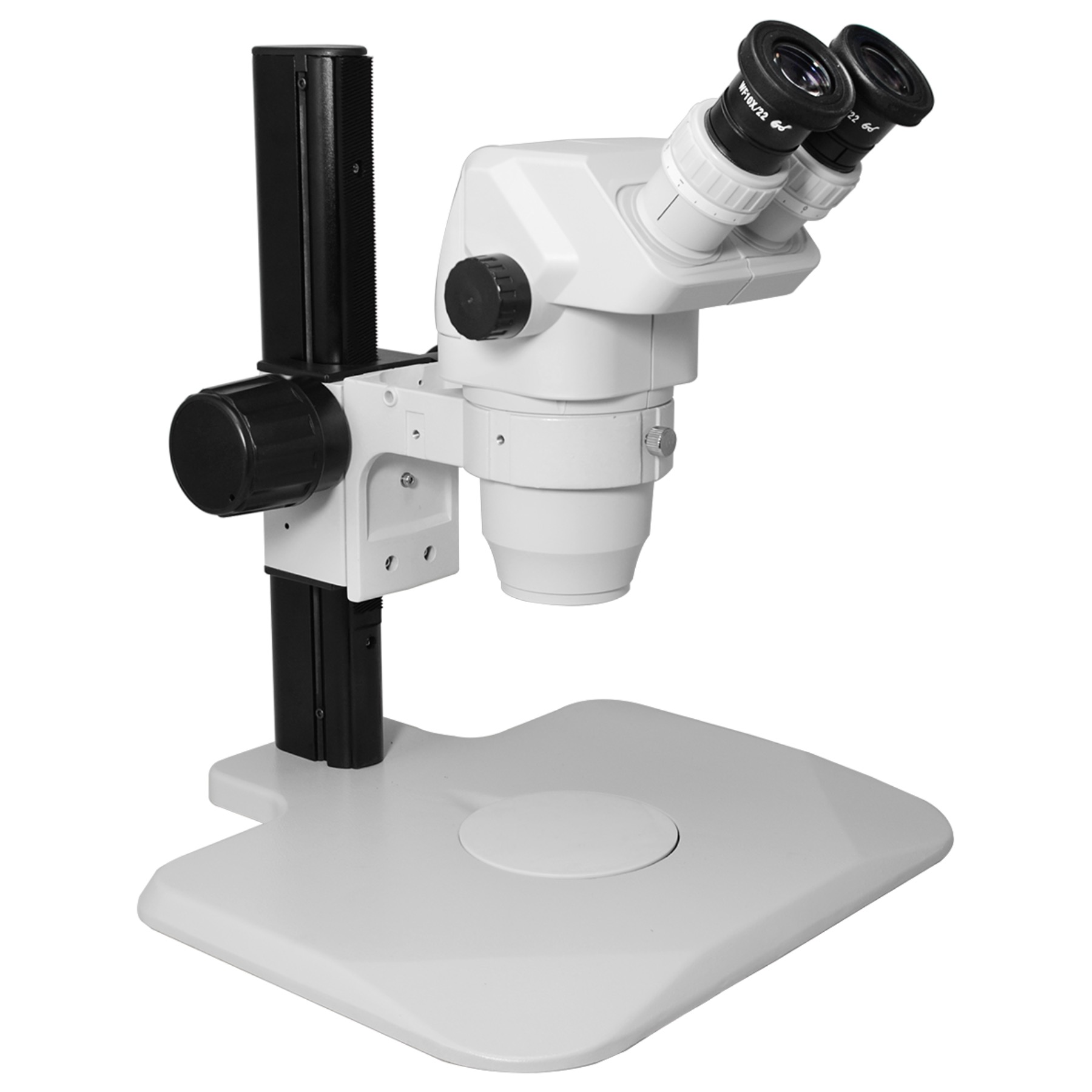

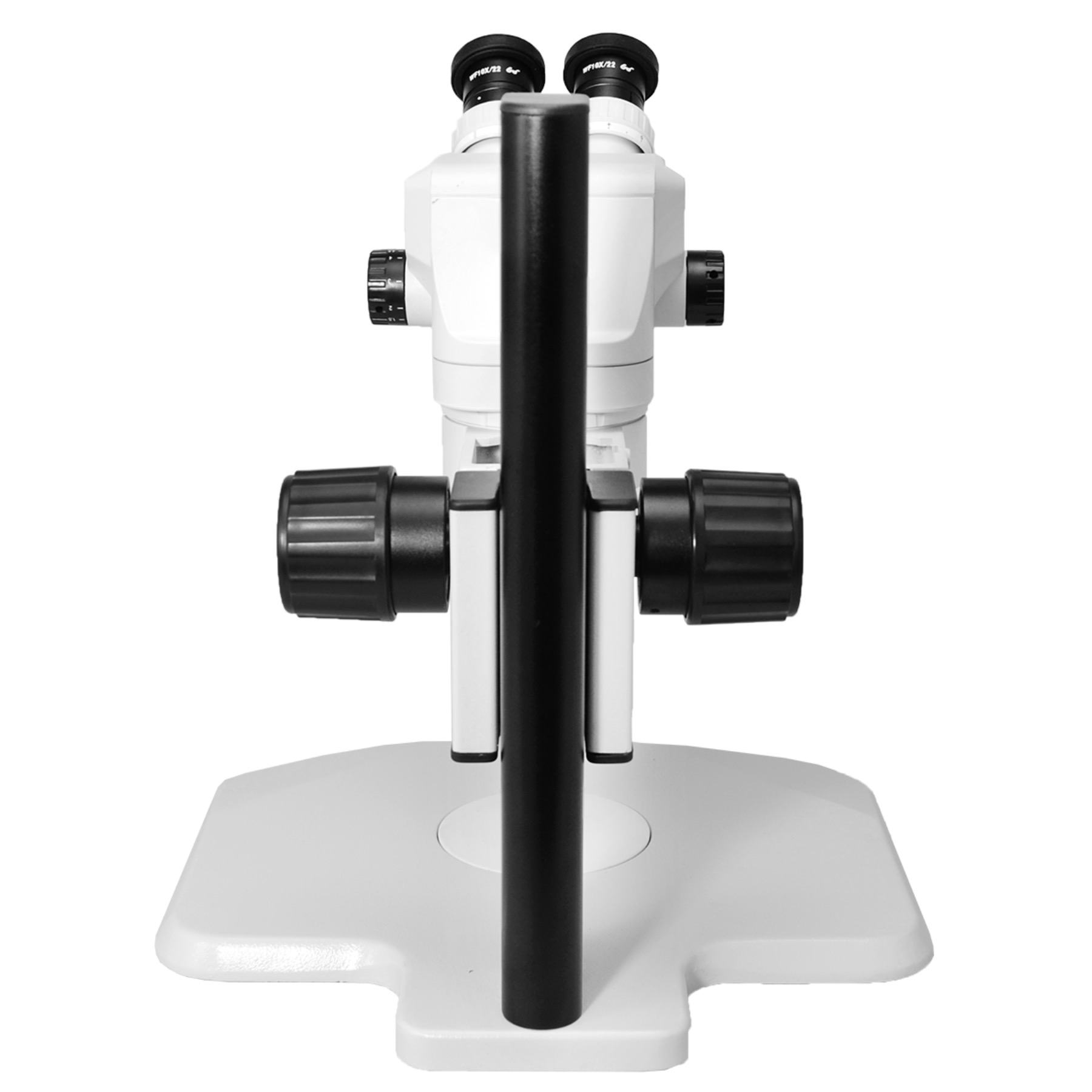

TS	Track stand with base
AA	Articulating arm stand with table clamp
HA	Hydraulic arm stand with table clamp
XY Stage Options
XY76	XY manual stage 7″x6″ area, 3″x2″ travel, for TSBL, PS, TS.
XY76R	XY manual stage with rotation, 3″x2″ travel, for TSBL, PS, TS.
XY1711	XY manual stage 17″x11″ area, 11″x9″ travel, for BS, BSU, DBS, AA, HA.
XY1711G	XY manual stage 17″x11″ area, 11″x9″ travel, for BS, BSU, DBS, AA, HA. Includes a glass plate for backlighting
Eyepiece Options
SE-10	10x eyepieces
SE-15	15x eyepieces
SE-20	20x eyepieces
SE-25	25x eyepieces
SE-30	30x eyepieces
Auxiliary Objective Lens Options
SA-03	0.3X reducer lens adapter, working distance 287mm, for SZ and STZ
SA-05	0.5X reducer lens adapter, working distance 177mm, for SZ and STZ
SA-075	0.75X reducer lens adapter, working distance 117mm, for SZ and STZ
SA-15	1.5X magnifier lens adapter, working distance 47mm, for SZ and STZ
SA-20	2X magnifier lens adapter, working distance 26mm, for SZ and STZ
Lighting Options
LED-POL-RL	LED Polarizing Ring Light
LED-DG	LED Dual Gooseneck Spot Light, gooseneck length 24cm
UV-RL	UV LED Ring Light (Black Light) for conformal coating inspection. 400nm wavelength, 3500K color temp, 60 LED, Intensity Adjustment.
Special Mirror Options
BGA-HM	BGA Inspection Mirror for inspecting BGA solder joints



STZ-45 / SZ-45 with 10x Eyepieces
Objective Lens	Working Distance	Magnification	Field of View
0.3x	287 mm	2x – 13.5x	16.3-109.4 mm
0.4x	217 mm	2.68x – 18x	12.2-82 mm
0.5x	177 mm	3.35x – 22.5x	9.7-65.6 mm
0.7x	120 mm	4.69x – 31.5x	6.9-46.9 mm
1x	100 mm	6.7x – 45x	4.8-32.8 mm
1.5x	47 mm	10x – 67.5x	3.2-21.8 mm
2x	26 mm	13.4x – 90x	2.4-16.4 mm
